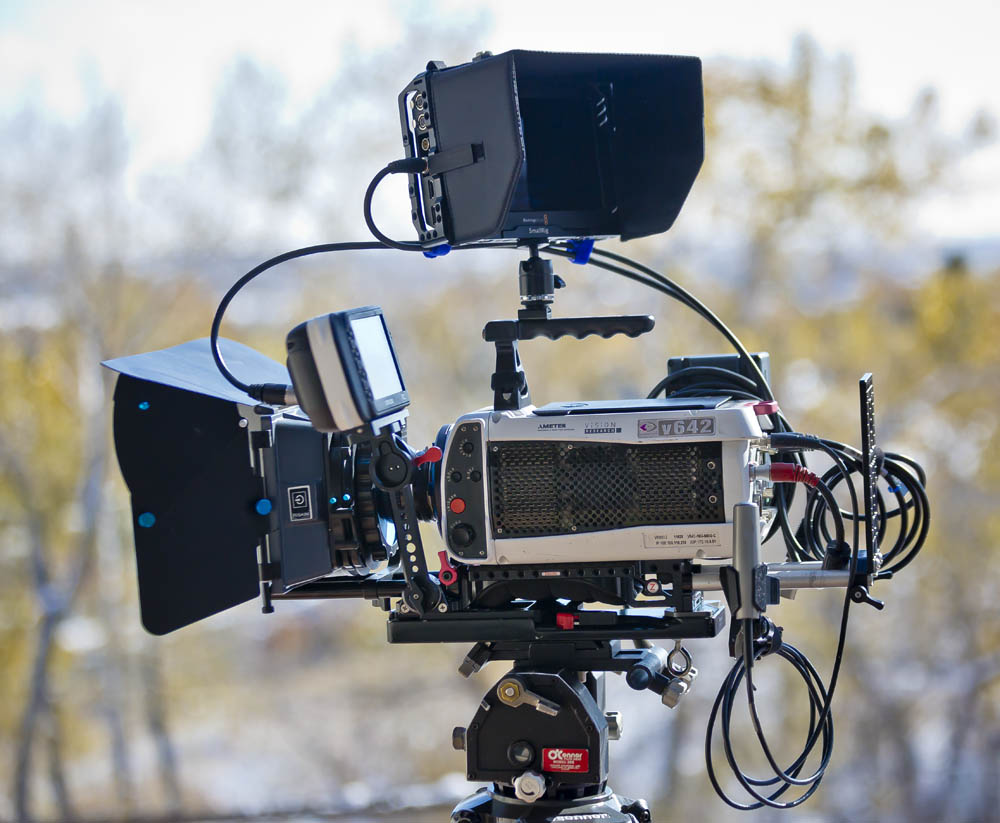

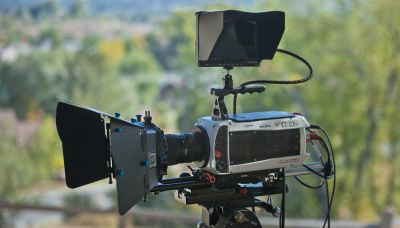

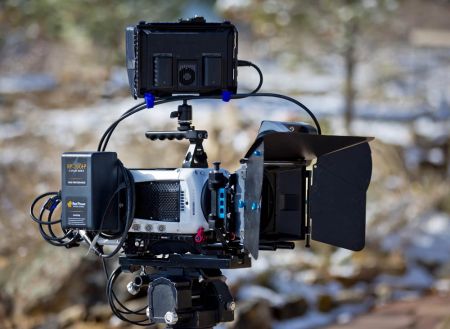

Phantom® v642 Broadcast

SENSOR  The v642 is equipped with a 4-megapixel, 12-bit, 2.5K sensor that can record up to 1452 fps at full resolution and up to 2549 fps at 1080p.  The maximum frame rate is almost 150,000 fps (@ 256x8),

LIGHT SENSIVITY  The camera's native ISO 1250 provides excellent light-gathering capability to support high frame rates, short exposure times, and unpredictable lighting conditions.

LENS OPTIONS  A variety of Nikon Prime lenses come with the camera.  However, PL and B4 lens mounts are also avaliable.

MEDIA DELIVERY  The raw video or data files can be offloaded on-site to your HDD or it can be processed by us and returned to you.

FPS SPECIFICATIONS

• 2.5K – 2560 x 1600

 - 1,452 maximum fps (48x slow-mo @ 30 fps playback)

 - 11 sec. record time 250 fps & 5.5 sec. record time at 500 fps

• 2K – 2048 x 1152

 - 2,392 maximum fps (80x slow-mo @ 30 fps playback)

 - 19 sec. record time 250 fps & 9.5 sec. record time at 500 fps

• HD – 1920 x 1080

 - 2,549 maximum fps (85x slow-mo @ 30 fps playback)

 - 20 sec. record time 250 fps & 10 sec. record time at 500 fps

• HD – 1280 x 720

 - 5,292 maximum fps (195x slow-mo @ 30 fps playback)

 - 50 sec. record time 250 fps & 25 sec. record time at 500 fps

OUTPUT OPTIONS

• DATA FILE TYPES

CINE, CINE COMPRESSED, CINE RAW, H.264 MP4, APPLE PRORES .MOV, MULTIPAGE TIFF,MXF PAL, MXF NTSC, UNCOMPRESSED QUICKTIME, WINDOWS BMP, OS/2 BMP, PCX, TGA, TIFF, TEAD, JPEG, JTIF, RAW, DNG, DPX

• LIVE VIDEO

 - Dual HD-SDI ports - Dual-Link 4:4:4 or 2x independent 4:2:2

 - Record and play simultaneously

CAMERA PACKAGE:

  • Phantom v642 camera
    + Nikon F-mount
    + PL mount

  • Nikon lenses
    + Nikon 20mm f/3.5 prime
    + Nikon 24mm f/2.8 prime
    + Nikon 28mm f/2.8 prime
    + Nikon 55mm f/2.8 macro prime
    + Nikon 105mm f/2.8 macro prime
    + Nikon 135mm f/2.8 prime
    + Nikon 35mm - 105mm f/3.5-4.5 prime

  • Proaim 2-stage 4" x 4" Matte Box

  • Blackmagic Video Assist 4K 7" Monitor

  • Hawk-Woods RP-200H Batteries (8)

  • Hawk-Woods RP-4x4 Quad Charger (2)

  • AC Power Supply

  • Vision Research RCU Break-out Box

  • BNC Push-Button Hand Trigger
  • Remote Control Unit (RCU) & Power Supply
  • Laptop with Control Software and 15 ft. cable
  • Pelican 1650 Hard-Shell Case
  • Manfrotto 3191 Tripod with 3066 Head
  • Lighting
    + 200w LED PAR/Fresnel (2)
    + 50w LED PAR/Fresnel (2)
    + 26W 8" LED Panel (3)
    + 24" x 32" softbox w/ grid (2)
    + 16" x 22" softbox w/ grid (2)
